Description

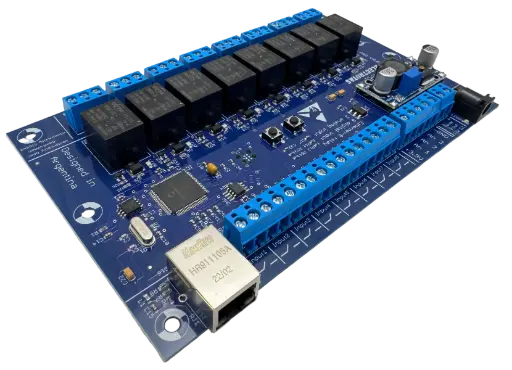

The Ethernet Controller Board with 8 relays, 8 digital inputs, and 3 analog inputs was designed for remotely controlling electrical equipment and monitoring both digital and analog signals. Easy installation and configuration make it ideal for industrial and home automation applications.
Technical Specifications
Built-in web server.
8 relay outputs, 220 V, 7 A maximum.
8 digital inputs (pushbutton/switch).
3 analog inputs (0–3.3 V).
Reset and factory-default buttons.
Unique MAC address.
Current consumption: 500 mA.
Recommended power supply: 12 V, 1 A (2.1 mm barrel jack).
Operating temperature: -20°C to 50°C.
Weight and Dimensions
Board weight: 210 g
Board dimensions: 182 mm x 110 mm x 25 mm
Package Contents
ETHER 8R8I3A board
