Ethernet Controller – 8 Relays
Ethernet Controller – 8 Relays
MODEL: ETHER8R
Nationwide Shipping (Argentina):
Worldwide Shipping:
Payment Methods:
Description

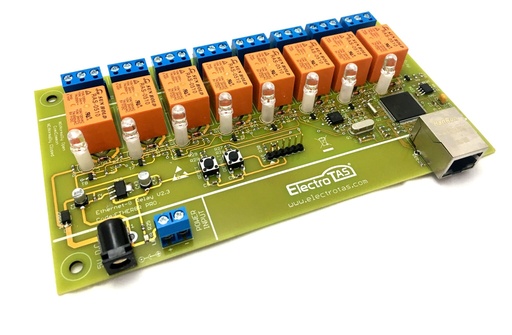

The 8-Relay Ethernet Controller Board was designed to remotely control electrical equipment. Easy installation and configuration make it ideal for industrial and home automation applications.
Technical Specifications
Built-in web server.
8 relay outputs, 220 V, 7 A maximum.
Reset and factory-default buttons.
Unique MAC address.
Current consumption: 300 mA.
Recommended power supply: 5 V, 1 A (2.1 mm barrel jack).
Control app for Android devices.
Operating temperature: -20°C to 50°C.
Weight and Dimensions
Board weight: 155 g
Board dimensions: 165 mm x 92 mm x 25 mm
Package Contents
ETHER 8R board
