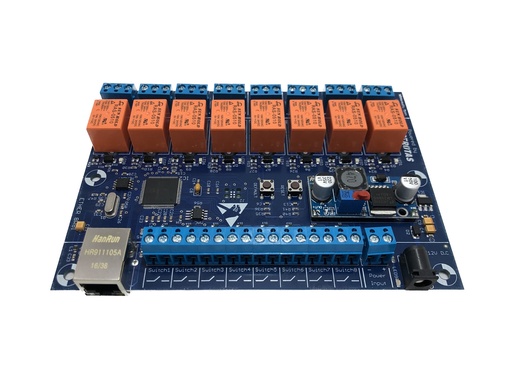

Modbus TCP Ethernet Controller – 8 Relays + 8 Digital Inputs
Modbus Ethernet Controller – 8 Relays – 8 Digital Inputs
MODEL: ETHER ModBus 8R8I
Nationwide Shipping (Argentina):
Worldwide Shipping:
Payment Methods:
Description
The Modbus Ethernet Controller Board with 8 relays and 8 digital inputs is designed for dependable operation in industrial environments. It can monitor data through its inputs and control equipment through its relay outputs.
Technical Specifications

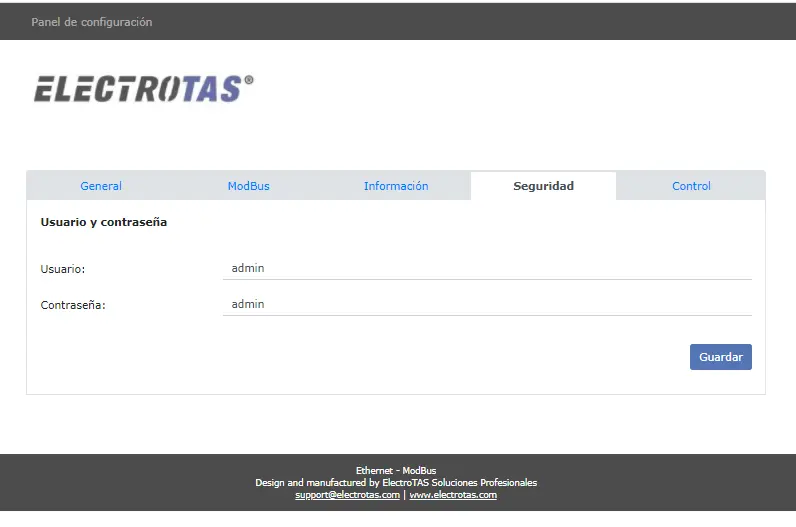

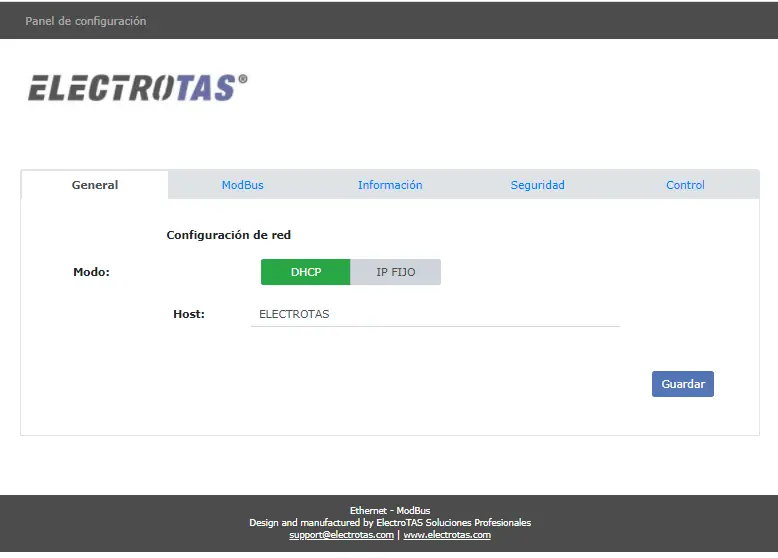

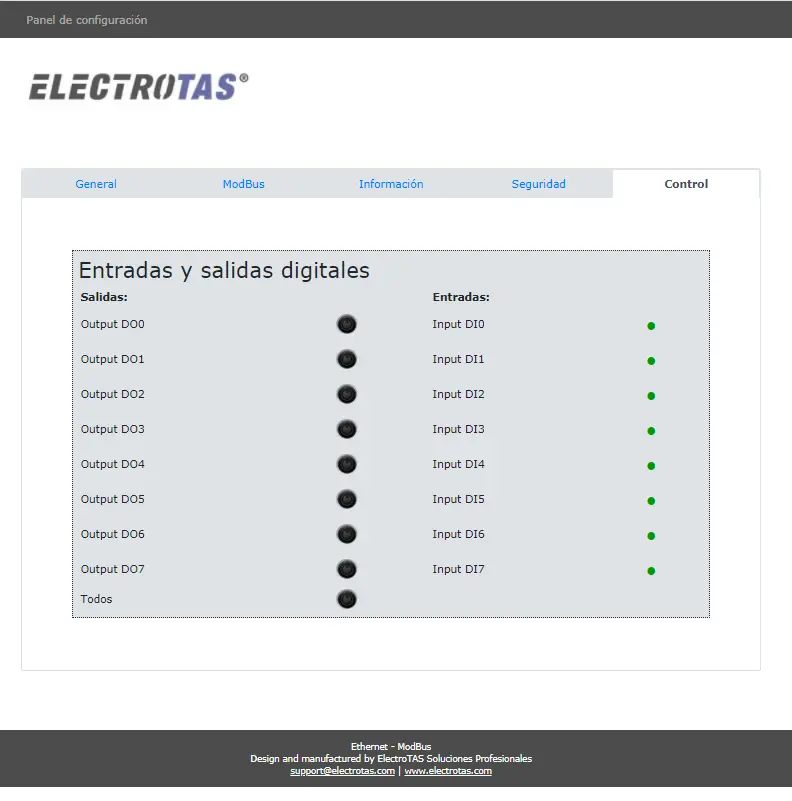

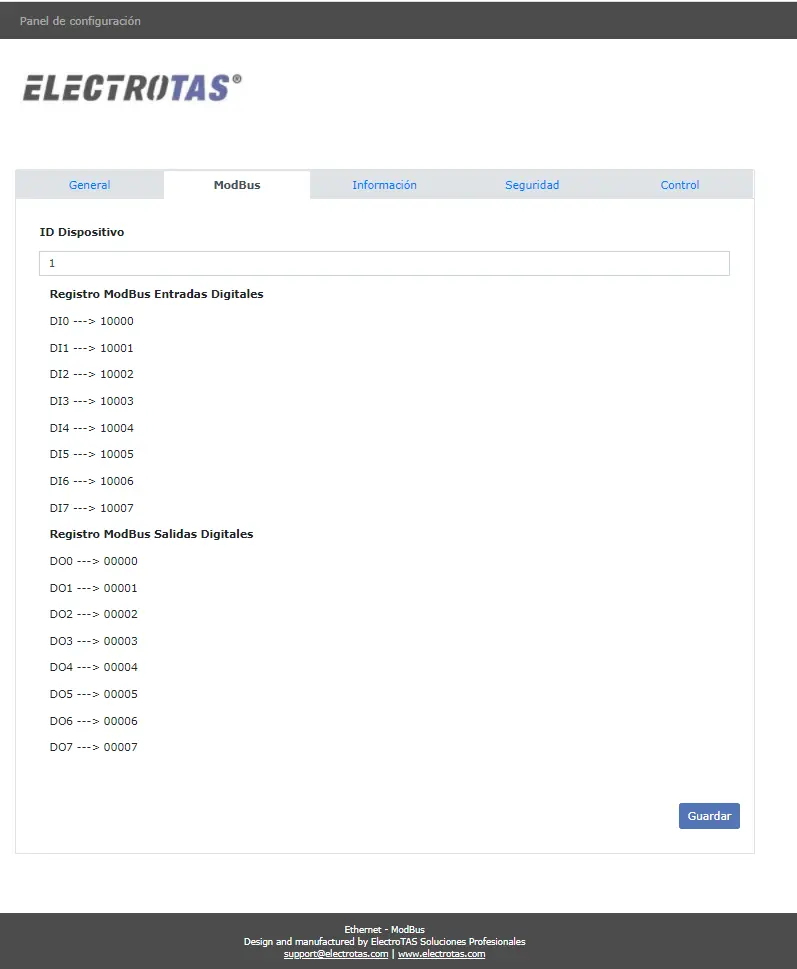

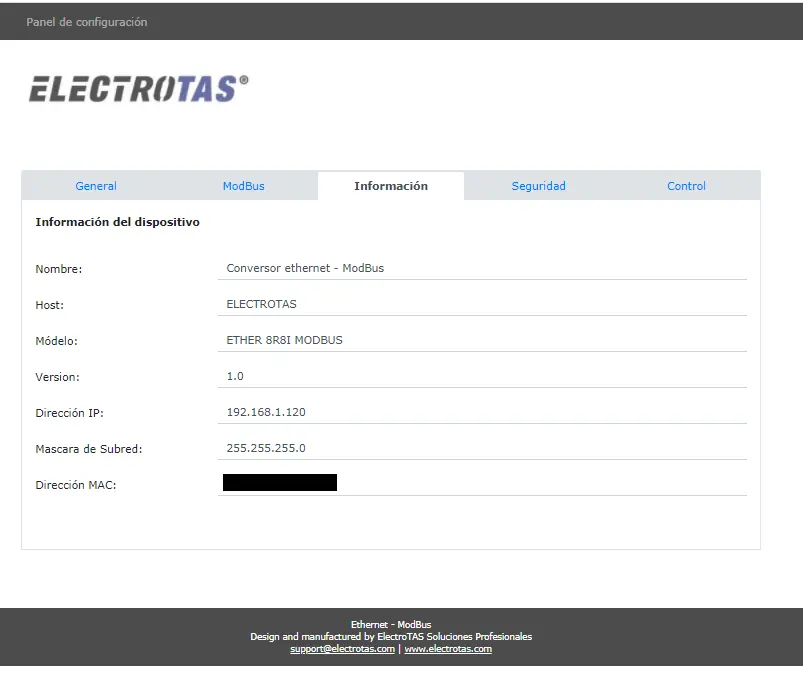

Built-in configurable web server.
8 relay outputs, 220 V, 7 A maximum.
8 digital inputs.
Reset and factory-default buttons.
Unique MAC address.
12 V power supply.
Current consumption: 500 mA.
Operating temperature: -20°C to 50°C.
Weight and Dimensions
Board weight: 195 g
Board dimensions: 153 mm x 110 mm x 25 mm
Package Contents
ETHER ModBus 8R8I board
