DMX-to-RGB Controller – 4 Modes
DMX-to-RGB CONTROLLER
MODEL: DMX-RGB-AIO
Nationwide Shipping (Argentina):
Worldwide Shipping:
Payment Methods:
Description

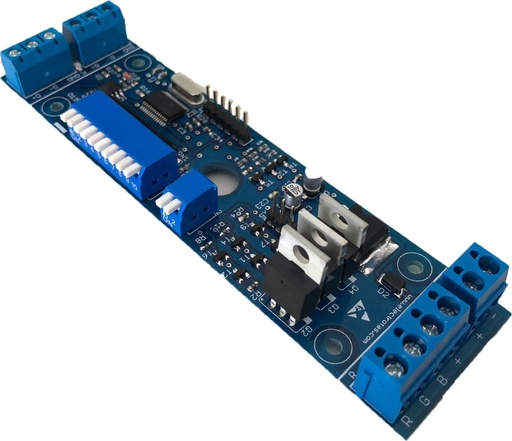

The DMX-to-RGB converter is a compact board that lets you control any RGB LED lighting device using a DMX signal.
Technical Specifications
4 A maximum per channel (Imax = 12 A).
4 DMX modes with 3/4/7 channels (selectable via a 2-way DIP switch).
12 V DC power supply.
Automatic or DMX mode.
Power LED.
DMX signal LED.
Common-anode RGB output.
Operating temperature: -20°C to 50°C.
Weight and Dimensions
Board weight: 50 g
Board dimensions: 130 mm x 35 mm x 25 mm
Package Contents
DMX-RGB AIO board
User Manual
