DMX-to-8-Relay Controller
DMX-to-8-Relay CONTROLLER
MODEL: D28R
Nationwide Shipping (Argentina):
Worldwide Shipping:
Payment Methods:
Description

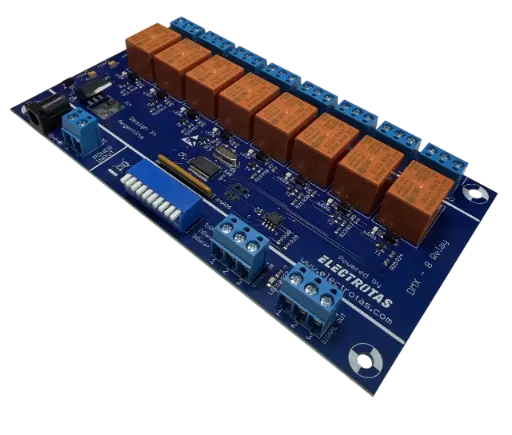

This board lets you control the state of eight relays using the DMX protocol.
Technical Specifications
8 relay outputs.
Relay rating: 220 V, 7 A.
12 V DC power supply.
Internal circuit consumption: 500 mA.
Normally Open (NO) and Normally Closed (NC) outputs.
Automatic or DMX operating mode.
Power and DMX signal LEDs.
Operating temperature: -20°C to 50°C.
Weight and Dimensions
Board weight: 131 g
Board dimensions: 165 mm x 90 mm x 20 mm
Package Contents
DMX-to-8-Relay board
User Manual
